XF051-00-B
It can meet the fire requirements stated in SOLAS 1974 and amendments in 1978 and watertigh requirements 0.08MPa.
|

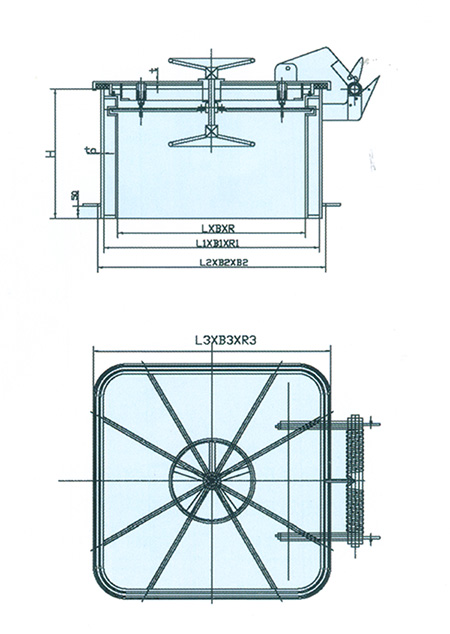

LxBxR100 clear size |
L1xB1xR155 coaming size |
L2xB2xR165 opening size |
L3xB3xR187 cover size |
t
cover thickness |
t0
coaming thickness |
qty of clips |
| 600x600 |
710x710 |
730x730 |
774x774 |
8 |
8 |
8 |
| 700x700 |
810x810 |
830x830 |
874x874 |
8 |
8 |
8 |
| 800x800 |
910x910 |
930x930 |
971x971 |
8 |
8 |
8 |
| 900x900 |
1010x1010 |
1030x1030 |
1071x1071 |
8 |
8 |
8 |
Note: Coaming height “H” is to be determined by client.
Identification example:
A60 watertight hatch cover, clear size is 600x600mm,t is 8mm, t0 is 8mm:
A60 watertight hatch cover A60 600x600x8-8 XF051-00-B
