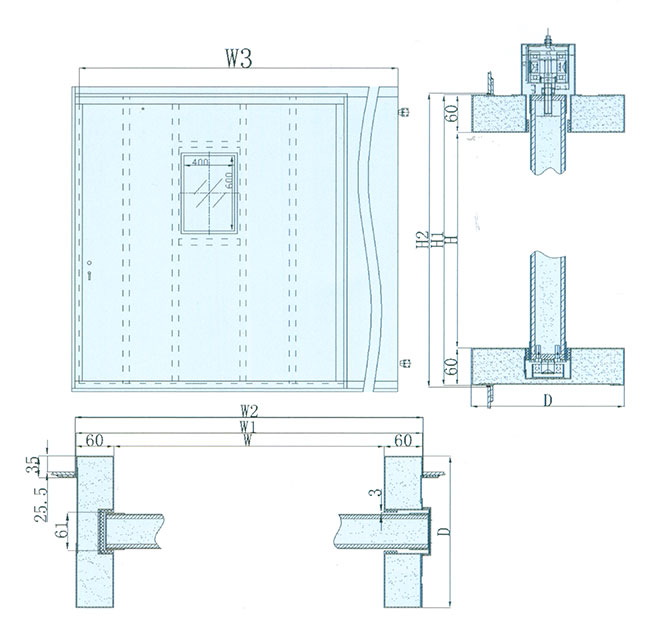

WX-XF-07-00
Applicable for accommodations with required fire rating A60.

通孔尺寸WxH(mm)	船壁开口尺寸W1xH1(mm)	门框外形尺寸W2xH2(mm)	导轨长度W3mm
1200x600	1325x725	1320x720	1307
1400x600	1525x725	1520x720	1307
1500x600	1625x725	1620x720	1307
1600x600	1725x725	1720x720	1307
1600x700	1725x825	1720x720	1507
1700x600	1825x725	1820x720	1307
1700x700	1825x825	1820x820	1507
1800x600	1925x725	1920x720	1307
1800x700	1925x825	1920x820	1507
1800x800	1925x925	1920x920	1707
2200x2000	2325x2125	2320x2120	4137

Identification example:
A60-class fireproof sliding door with clear size of 2200x2000mm:A60-class fireproof sliding door 2200x2000 WX-XF-07-00
