252XF005M-00-S
Applicable for passage way of fireprotection area class A division and other place,steel and stainless steel can be used as material.

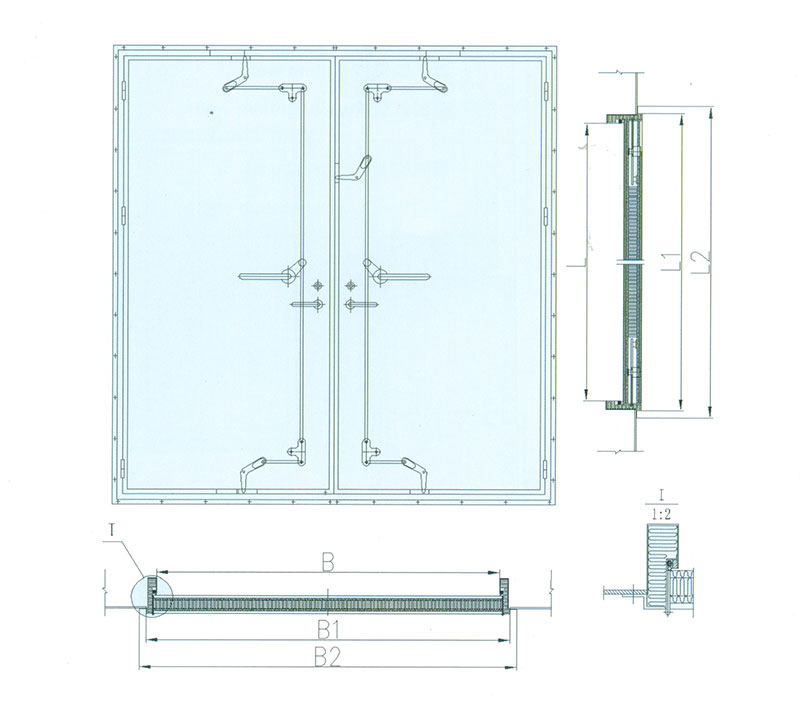

type	clear size BxH	opening size of bulkhead B1xH1	external size B2xH2
A60	1000x1600	1105x1705	1150x1750
	1100x1650	1205x1755	1250x1800
	1300x1700	1405x1805	1450x1850
	1600x1750	1705x1855	1750x1900
	1850x2000	1955x2105	2000x2150

Identification example:
A60 weathertight and gastight door,left opening,width clear size of 1000x1600mm:?
A60 weathertight and gastight door 1000x1600L 252XF005M-00-S
