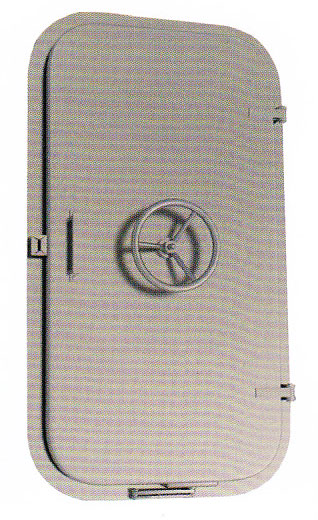

XF028-A-00
适用于具有A级分割要求，防火等级为A60级要求的围壁处所，门密性满足水密要求。

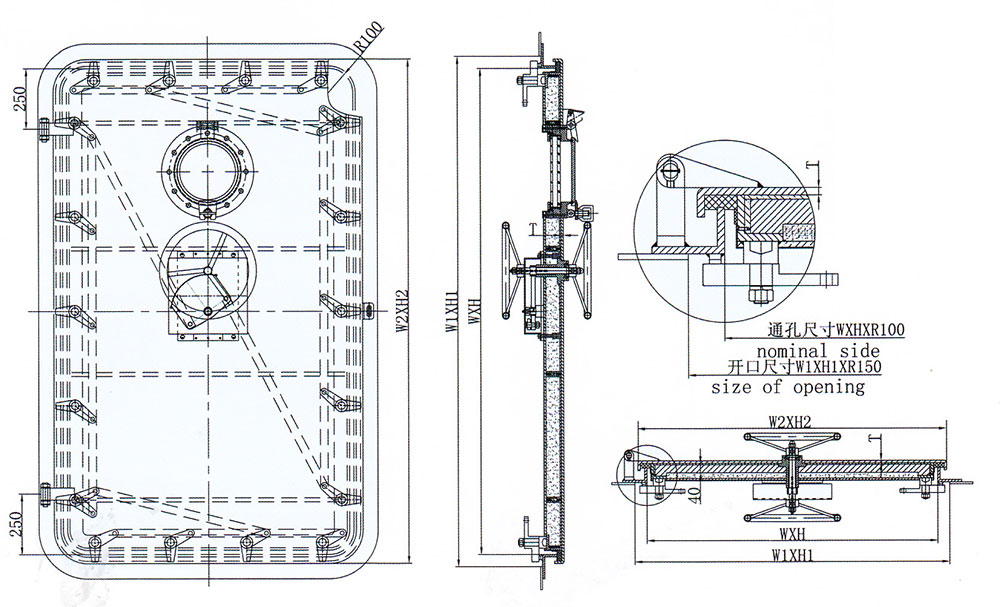

通孔尺寸HxW	门板尺寸	围壁开口尺寸H1xW1	门板厚度T	轧扣数量
1200x600	1275x675	1300x700xR150	8	6
1400x600	1475x675	1500x700xR150	8	6
1500x600	1575x675	1600x700xR150	8	8
1600x600	1675x675	1700x700xR150	8	8
1600x700	1675x775	1700x800xR150	8	8
1700x600	1775x675	1800x700xR150	8	10
1700x700	1775x775	1800x800xR150	8	10
1800x600	1875x675	1900x700xR150	8	10
1800x700	1875x775	1900x800xR150	8	12
1800x800	1875x875	1900x900xR150	8	12
2000x1200	2075x1275	2100x1300xR1500	8	18

可承受水压：0.03-0.1Mpa。
标记示例：
通孔尺寸为2000x1200mm的A60级钢质防火水密门：A60级钢质防火水密门2000x1200 XF028-A-00-1
